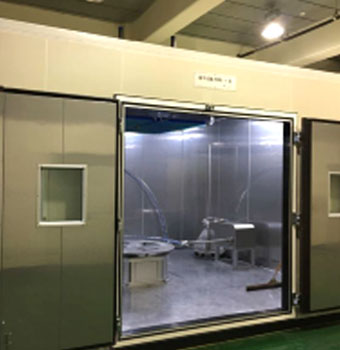

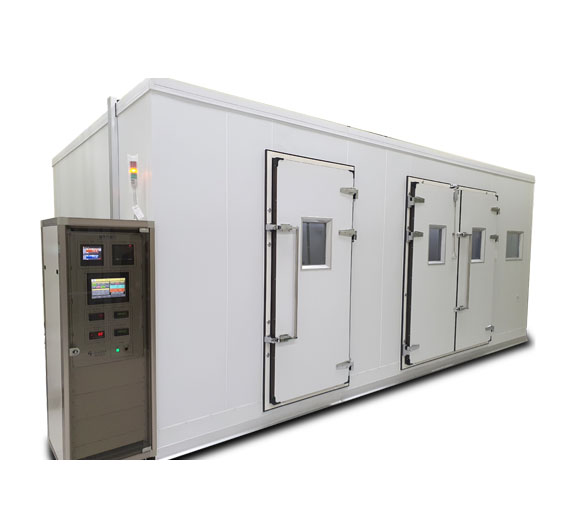

| MODEL | SSWT Series | ||
|---|---|---|---|

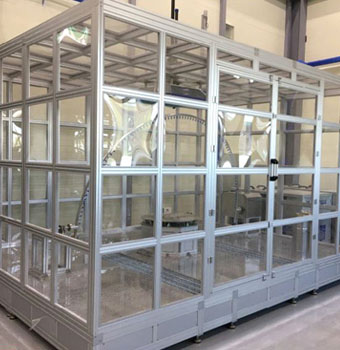

| 내부크기(Internal Dimension (WxDxH)) | 1000x1000x1000mm ~ 6000x4000x3000mm 대형Size제품 주문제작 가능 (Large size products can be customized) |
||
| 적하상자(Loading Box (WxDxH)) | 600x600x100mm ~ 2000x2000x100mm 대형Size 주문제작 가능 (Large size can be customized) |
||

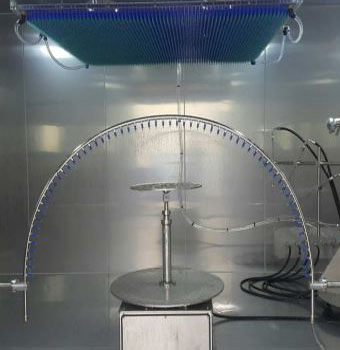

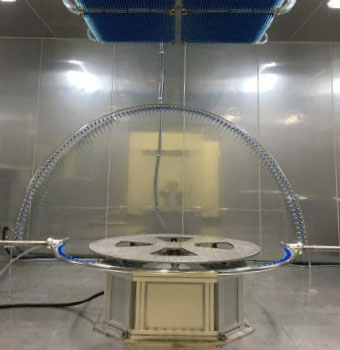

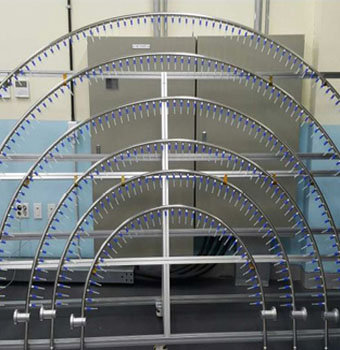

| 진동관(Oscillating (Swivel Tube)) | R-400, 600, 800, 1000, 1200, 1400, 1600 주문제작 가능 (Custom-made is possible) |
||
| 회전테이블(Turn Table) | Ø500, Ø1000, 기타 크기 주문제작 가능 (Other size can be customized) SUS304 Lathe Processing |
||

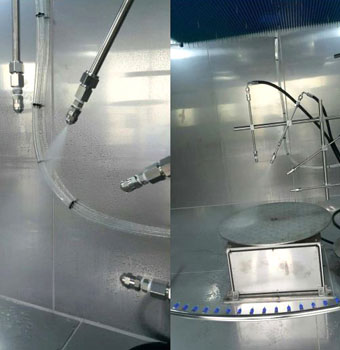

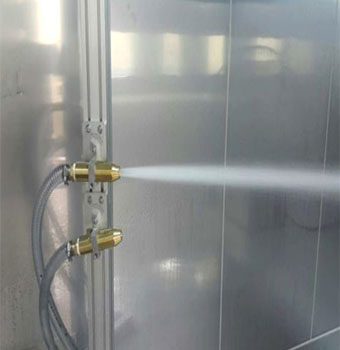

| 노즐(Nozzle) | 황동 (Brass) | ||
| 외형타입(Appearance Type) |
|
||
| 운전(Control) | Touch Screen Digital Display | ||
| 적용규격(Applied Standard) | IEC60529 (IPX 1~8,9K), ISO20653, KS R 0015 (R1,R2,S1,S2) | ||
| 전원(Power Source) | AC 220/380V, 3Phase, 50/60Hz | ||
