| MODEL |

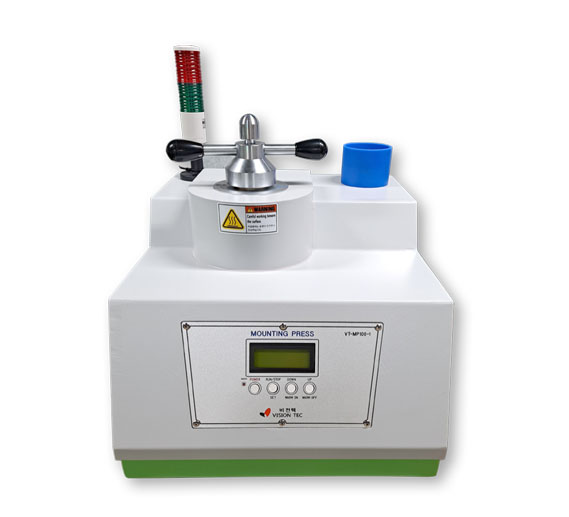

VT-MP 100 (1 Ball Type → 1 Upper Cap) |
VT-MP 200 (2 Ball Type → 2 Upper Cap) |
||
|---|---|---|---|---|
| Heater | 1.8Kw | 1.8Kw x 2 | ||
| Heater Material | Cylindrical Type | Cylindrical Type | ||
| Sensor | Platinum Sensor ,CA -Type | Platinum Sensor ,CA -Type | ||
| Mold Diameter | Ø32 (Basic) (It can be make a size large or small by customer order.) |
Ø32 x Ø32 (Basic) (It can be make a size large or small by customer order.) |
||
| Power Pack | Hydronic | |||
| Cylinder Stroke | 120mm | |||
| Cooling Type | Water Flow Type | |||
| Upper Cap | Screw Type | |||
| Power Source | 220V, 1P, 50/60 Hz, 2Kw | 220V, 1P, 50/60 Hz, 4Kw | ||
| Dimension(WxDxHmm) | 470 x 520 x 600mm | 800 x 550 x 600mm | ||
| Presure / Weight | 160 ~ 170 Bar / 45Kg | 160 ~ 170 Bar / 70Kg | ||
| Heating &Cooling/Time | 8min / 9min | |||
| LCD Controller | Temperature, Heating Time(min) / Cooling Time(min) Setting, Buzzer | |||
