Features

1. Ease of use offered by anyone the Korean & English Dialogue Type Screen Configuration & Control on LCD Touch Screen.

2. Any type of test condition can be setted up, due to the function of setting up a large capacity program.
(500 pattern 50,000 segment, 1 pattern 100 segment)

3. The operation ststus of the test equipment is displayed on the screen.(Error message display)

4. It is operable interface with PC and test equipment (RS485), and it is easy to manage test data since each the operation ststus, the operation information is archived the PC.

5. The system of this facility has a P.I.D. control method that sets the temperature of the controller. It is maintained and is designed to minimize power consumption by accurately adjusting the temperature and dehumidification. It is designed to minimize power consumption by accurately adjusting the raise temperature and dehumidification.

6. A 50Ø(mm) cable hole is installed on the left side of the chamber to facilitate power authorization devices, etc. on internal test materials.

7. In case of abnormal operation of each part, a buzzer and a lamp are installed to facilitate identification, and abnormal areas are designed to be displayed on the monitor in case of abnormalities in each part.

8. The observation window contains hot wire glass on the surface to prevent condensation and humidity during humidity test, It is designed to automatically dissipate the humidity around it, making it easier to see inside.

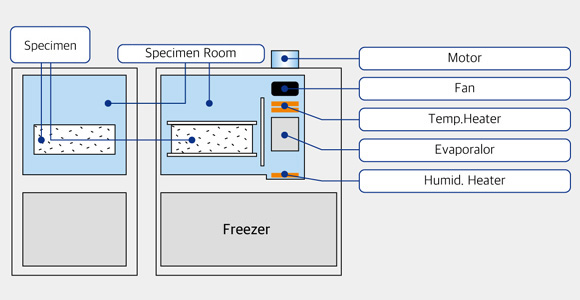

Temperature Control Principle

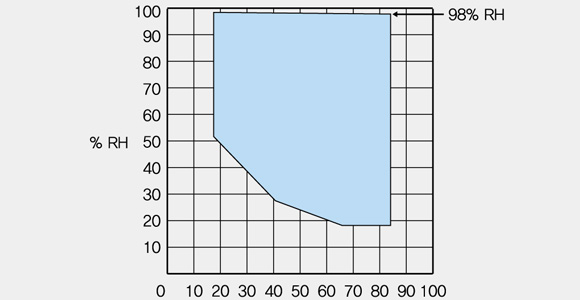

Relative Humidity-%RH

Specification

← Scroll Left/Right →

MODEL		VT-THC 100 SERIES			VT-THC 200 SERIES
MODEL		VT-THC100A	VT-THC100B	VT-THC100C	VT-THC200A	VT-THC200B	VT-THC200C
Dimension WxDxH (mm)	In	500 x 500 x 600	800 x 600 x 800	1000 x 800 x 1000	500 x 500 x 600	800 x 600 x 800	1000 x 800 x 1000
Dimension WxDxH (mm)	Out	1020 x 960 x 1630	1320 x 1060 x 1960	1520 x 1260 x 2180	1020 x 960 x 1630	1320 x 1060 x 1960	1520 x 1260 x 2180
Power Source		AC220V or 380V 1~3 Phase(Ø) 50/60Hz
Operating Temperature		-20℃ ~ +100℃			-40℃ ~ +100℃
Operating Humidity Range		30% ~ 98% RH			30% ~ 98% RH
Performance Guaranteed Ambient Temp.		10℃ ~28℃, 30% ~65%
Power Consumption		6Kw	14Kw	16Kw	7Kw	16Kw	18Kw
Performance	Temp. Control Range	0.1℃
	Humi. Control Range	0.1%
	Temp. Distribution	±0.8℃
	Humi. Distribution	±3.0%
	Temp. Variance	1.0℃/Min
	Humi. Variance	2.0%/Min
Freezing Type		Mechanical Multi-Stage Compression
Cooling Type		Air Cooled (Basic) or Water Cooled (Water Cooled = Option)
Heater		Electric Rod Type & Inconel Heater
Materials	In	SUS 304 (1.0t Steel Plate)
Materials	Out	SS41 Steel Plate Painting (Powder Coating ) 1.2t
Door	Open	Over Lap Single Door
Door	Packing	Silicon Rubber Double Packing (For High Temperature)
S/W Mode		Power s/w, Room Lamp s/w, Buzzer s/w
Recoder		Option
Blower Fan		Aluminum Sirroco Fan
Accessories		1. Observation Window 2. Cable Hole(Ø50mm) 3. Shelf(2sets - SUS304,Hole Punching) 4. Tower Lamp(3 Colors)
Safety Devices		1. ELB 2. OHP 3. NFB 4. ROLP 5. FMOLP 6. HLP S/W 7. CMOI 8. RPR
Specialties		1. Can be below -40°C or above +100°C (Option) * Depending on the temperature, internal and external materials can be change 2. Recoder (Option)

* External appearance & type and specifiation may be to change without advance notice to enhance the performance of equipment.

PRODUCTS

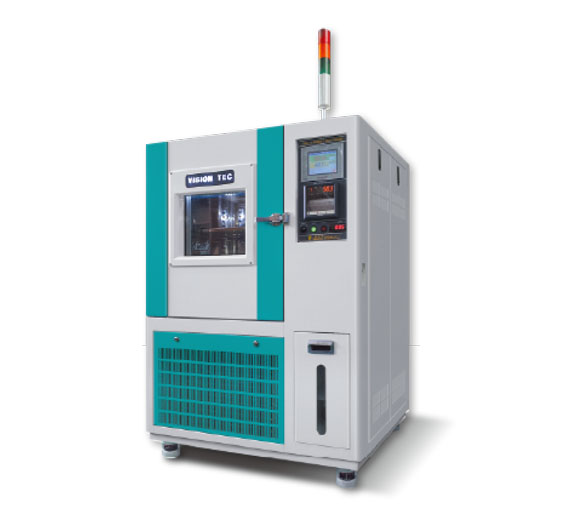

Constant Temperature & Humidity Chamber
