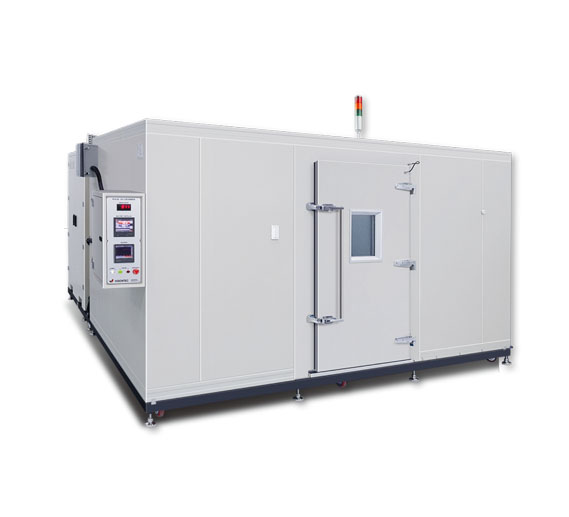

Temperature & Humidity WALK-IN CHAMBER

"PID Auto Control" type allows accurate operation of temperature and humidity

The Characteristics of A Products
1. The use of "Touch Screen Type" temperature and humidity controller facilitates program input and makes it easy for anyone to use through interactive operation.
2. "PID Auto Conerol" type allows accurate operation of temperature and humidity.
3. By using "Sirocco Fan", it is designed to maintain constant air circulation inside the chamver, control and maintain uniform distribution of temperature and humidity.
4. The "View Window" is equipped with a heat rays heater so that it does not become frosty even in low temperature operation and can be observe at any time.
5. The correct assembly of urethand panels and perfect silicon treatment have no water leakage at all.
6. If an error occurs during operation of the chamber, the error message is displayed on the screen, and anyone can easily check the error action, then restarting the machine.
7. It can communicate with PC, store data, and use data whenever necessary.
  • Temperature / Humidity Controller(TEMI 2500)
  • Temperature / Humidity Recorder(GR 200)
  • 220V Power Concent & RF Connect
Specification
← Scroll Left/Right →
MODEL THC-20 THC-30 THC-40 THC-50
Temp. Range & Humid. Range -40℃ ~ +80℃ & 30% ~ 95% RH
Temp. & Humid.  Accurascy ±1℃ & ±3℃ RH
Chamber Size In 2000x2000x2000 3000x3000x2000 4000x4000x2000 5000x5000x2000
Out 2200x2700x2600 3200x3700x2600 4200x4700x2600 5200x5700x2600
Refrigerator Unit 1500x1000x2600 2000x1000x2600 3000x1200x2600 3500x1500x2600
Control Box WxDxH (mm) 800x600x2000
Material In) SUS 304  Out)Urethane Panel
Temp. & Humid. Controller Digital P.I.D Program Control System (NEX 1200 / Touch Screen)
Temp. Sensor PT 100Ω
Humid. Sensor E + E91 (Direct Reading)
Heater Dry 24kW 48kW 90kW 120kW
Humid. 10kW 20kW 36kW 50kW
Refrigerator 7.5HP x 2Set 10HP x 2Set 15HP x 2Set 20HP x 2Set
3HP(For Dehumidification) 5HP(For Dehumidification) 7.5HP(For Dehumidification) 7.5HP(For Dehumidification)
Circulation Motor 1HP x 4Set 1HP x 6Set 2HP x 8Set 3HP x 10Set
Safety Device Refrigerator over load relay, EMC S/W, E.L.B, Over heat protect, EOCR
Accessories Power and Siganal Line supplies inside the chamber, Variety of utilities
Power Source 380V, 3Ǿ, 51kW(80A) 380V, 3Ǿ, 90kW(135A) 380V, 3Ǿ, 166kW(250A) 380V, 3Ǿ, 225kW(350A)
* External appearance & type and specifiation may be to change without advance notice to enhance the performance of equipment.
