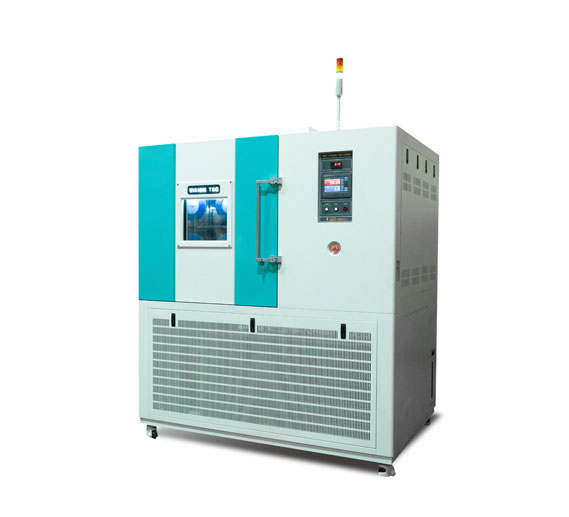

VT-ATHC series are altitude temperature and humidity chambers (Climatic vacuum chambers) for performing temperature and altitude condition testing in one combined test chamber more than one condition can be created simultaneously to satisfy many types of test requirements.

Our ATHC series chambers are designed to simulate altitude conditions up to 100,000ft. also offer simultaneous temperature/altitude and humidity testing from site altitude to 35,000ft.

VT-ATHC series are manufactured according to the Total Quality procedures, in compliance with the ISO 9001 standard.

General Features

1. Silent compressors using ecologically friendly refrigerants.

2. Air temperature variation and quick adaptation of specimens to it.

3. Friendly, flexible, up-to date control and management systems.

4. Allows easy servicing and upgrades.

← Scroll Left/Right →

Temperature Heater	Type	Sealed stainless ateel SUS304 fin heaters of low watt density per surface area
	Capadity	7kW
	Control	SSR (Solid State Relay) Control (By by SSR(Solid State Relay)) Maker : Woong young(Korea) Input 4~32VDC Voltage range 90~480VAC Capacity 25A Response time Z4 : 8.3±1ms
Refrigeration System	Type	Mechanical single stage refrigeration system (Air cooled condenser)
	Compressor	Hermetic type (4HP x 1st) Maker : Copeland (USA)
	Condenser	Air cooled condenser Heat transfer area 27.35m² Condensing capacity 12,079kcal/h Fan 400ø Motor 0.1Kw x 6p
	Evaporator	Pin Tubular Type Multi-Segment Rod Auto-Regulation Non-drilling Type (Finned tubular type multisegment load automatically regulation and non freezing during the long time running on low-temperature and high humidity) Maker : Mangseong Cold heat (Korea)
	Expansion valve	Danfoss (Denmark)
	Solenoid valve	Danfoss (Denmark)
	High and low Pressure limit switch	Saginomiya (Japan)
	Liquid receiver, Liquid seperator	Maker:Donwhawin (Korea)
	CFC free Refrigerant	R404A
Air Circulation	Fan Type	Sirocco fan x 2Nos
	Motor	Industrial geared motor 0.75Kw 4 Pole Maker : SPG (Korea) Speed Max.1250r/min Torque : 5500gf.cm
	RPM Control	Inverter Control By inverter Maker:LS (Korea) Max. Capacity : 1HP (0.75Kw) Ouput Rating : 1.5kVA Input Rating : 50~60Hz
Vacuum Pump	Type	Oil free vacuum pump, Piston type
	Pumping speed	80 Liters/minute at 60Hz
	Uitimate pressure	20 torr
	Motor Power	300w

* External appearance & type and specifiation may be to change without advance notice to enhance the performance of equipment.

Specification

← Scroll Left/Right →

MODEL		VT-ATHC 200	VT-ATHC 300	VT-ATHC 400	VT-ATHC 500	VT-ATHC 600
Dimension	In (WxDxH)	600 x 600 x 700	700 x 600 x 750	740 x 740 x 740	800 x 800 x 800	800 x 900 x 1000
Dimension	Out (WxDxH)	1350 x 1550 x 2000	1450 x 1900 x 2000	1490 x 2040 x 2000	1550 x 2100 x 2060	1550 x 2200 x 2300
Useful Capacity (ℓ)		252	345	405	512	720
Temp. Range		-70℃ ~ +150℃ (changeable according to user’s demand)
Temp. Accuracy		less than ± 0.3 ℃
Temp. Fluctuation		less than ± 0.5 ℃
Humi. Range		20% ~ 98%RH (10% ~ 98%RH is an optional spec.)
Humi. Stability		less than ± 2% RH
Humi. Uniformity		less than ± 3% RH
Heat-up Rate		More than 3 ℃/min
Pull-down Rate		More than 2 ℃/min
Max. Final vacuum		1mbar (100pa)
Vacuum Pump		Two stage oil rotary pump or dry pump
Condensing		Air cooled or water cooled type
Power Source		220V/380V, 50Hz/60Hz, 1PH/3PH (Changeable according to customer specification.)
Controller		Programmable type TFT color LCD 5.7” controller (Max. 120 patterns, Max.1,200 profile)
Refrigerant		R404A, R23 (CFC free)
Safety Devices		1. Leakage Breaker 2. Circuit Breaker 3. Over Heat Protector 4. Refrigerator High/Low Pressure Switch 5. Water Low Level S/W 6. Compressor Built-in Protector 7. Pressure Relief Port 8. Electrical over current relay
Accessories		1. Viewing window (heater wire including, reinforced window) and interior light 2. RS232/485 oven networking With control software 3. Caster for moving 4. Oil mist trip 5. Spare parts kit 6. Instruction and maintenance manual
Select Options		1. Low humidity kit 2. Chart recorder 3. Port Hole 4. GN2 purge 5. Demineralization unit (RO system) 6. Customization available
Utility		1. Drain Line (NW 15) 2. Vent (NW15) 3. Vacuum (NW 15)

* External appearance & type and specifiation may be to change without advance notice to enhance the performance of equipment.
