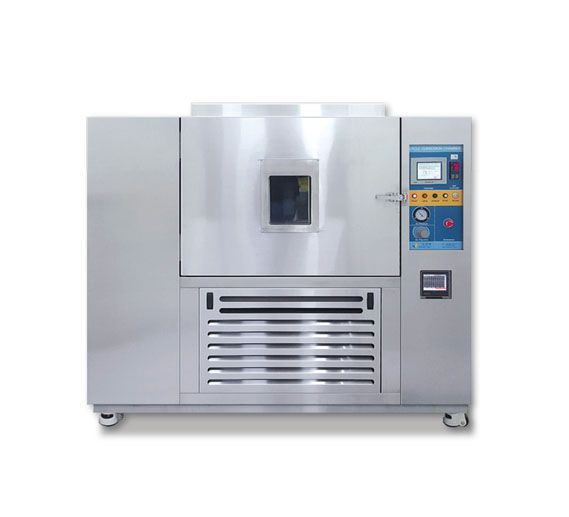

※ A Cyclic Corrosion tester is an experimental equipment that simulates the environment or harsh environment that is actually used for development or production across all industries, including automobiles, aviation, electronics, and semiconductors.

It is to verify the durability and corrosivity of the product through this experimental equipment.

Additional environmental conditions include low humidity conditions (5% RH), and additional test conditions include MS600-66,GMW 14872.

Features

1. Using a “Program Temperature Controller” temperature rasing,maintenance and cooling can be freely set

2. Using a “Recorder”, all data can be archived as a record.

3. 5.7" Color Touch Screen Controller simplifies manual and program operation

4. P.I.D. control enables precise control by applying 16 Zone individual control allocation

5. It can be integrate control through RS-232C communication

6. Emergency response through emergency stop switch

7. Basic dual packing system fundamentally blocks leakage of outside air and exposure to high temperature and low temperature of outside walls

8. Uniform temperature distribution with upper discharge and lower suction structures by Sirocco Fan

9. Wetting sensor through 'Gauze' blocks electronic sensor breakage elements

10. Applied corrosion resistant material inside chamber

11. Strengthening corrosion resistance by Teflon coating of components

12. Installing double vacuum heated glass for internal observation when customer's request

13. Power and signal can be applied through the Cable (Access) Port (Hole)

14. Water supply system is 'pipe water ' direct supply type or 'water tank type' can be selected.

15. Efficient equipment operation with a choice of function that suit your environment.

Notes on Selection

1. Size and performance can be adjusted to meet user needs.

2. Users can select their preferred controller or related parts.

3. The above specifications may be changed without notice to improve performance and functionality.

4. The performance guarantee of the above tester is based on the temperature around the tester at 20±5 and no load.

5. The temperature change rate can be up to 3℃.

6. Shelves are supplied with basic 2 tier shelf.

7. Salt spray test section is applies to the 'salt water spray test 'regulation KS D 9502

8. The salt water spray test section requires compressed air.

9. The CFC FREE refrigerant may be applied according to the user's request.

10. The use of distilled water is recommended for stable operation of the humidifier.

Specification

← Scroll Left/Right →

MODEL		VT-CCT-200	VT-CCT-500	VT-CCT-1000
VOLUME	LITER	200ℓ	490ℓ	1,000ℓ
TEMPERATURE RANGE	CCTA (Basic Type)	R.T. ~ 60°C	R.T. ~ 60°C	20°C ~ 60°C
	CCTB (Low temperature Type)	-20°C ~ 70°C	-20°C ~ 70°C	-20°C ~ 70°C
	CCTC (Immersion Type)	-20°C ~ 70°C	-20°C ~ 70°C	-20°C ~ 70°C
	ACCURACY / UNIFORMITY	± 0.5 °C , ± 1.0°C	± 0.5 °C , ± 1.0°C	± 0.5 °C , ± 1.0°C
	CHANGING RATE	"MS 600-66(H.K.MC)" or 1 °C / min	"MS 600-66(H.K.MC)" or 1 °C / min	"MS 600-66(H.K.MC)" or 1 °C / min
HUMIDITY	RANGE	30% ~ 95%	30% ~ 95%	30% ~ 95%
	ACCURACY	± 3.0%	± 3.0%	± 3.0%
SPRAY VOLUME	mL/ 80㎠ / hour	KS D 9502 1.5 ± 0.5 mL	KS D 9502 1.5 ± 0.5 mL	KS D 9502 1.5 ± 0.5 mL
SATURATION TEMPERATURE	RANGE	RT ~ 50°C	RT ~ 50°C	RT ~ 50°C
	ACCURACY	± 0.5 °C	± 0.5 °C	± 0.5 °C
MISC.	OPTION ITEM	Type A Salt water spray → Forced drying → Wetting of repeat Type B Salt water spray → Forced drying → Wetting → Natural drying → Low temperature of repeat Type C Salt water immersion → Forced drying → Wetting → Natural drying → Low temperature of repeat Etc User test specifications
SIZE (mm) TYPE: A,B	INTERNAL	500W x 500D x 800H	700W x 700D x 1,000H	1000W x 1000D x 1000H
	EXTERNAL	1,400W x 1,500D x 1,800H	1,550W x 1,600D x 2,000H	1,800W x 1,800D x 2,000H
MATERIAL	INTERNAL	SUS 316L or Titanium	SUS 316L or Titanium	SUS 316L or Titanium
	EXTERNAL	SUS304 2B POLISHED	SUS304 2B POLISHED	SUS304 2B POLISHED

* External appearance & type and specifiation may be to change without advance notice to enhance the performance of equipment.

Safety Device & Optional Specifications

Safety Device

1. E. L. B. (Earth Leakage Breaker)
2. Fuse
3. M.O.C.R (Motor Over Current Relay)
4. Compressor O.C.R. Compressor Thermal Protector
5. Dry and Wet Heater High Heat Protector
6. Water Low Level Alarm

Optional Specifications

1. CASS Test
2. Reverse Phase Protect Device
3. RS232C or 485 W/Running Program
4. Solution Mixing System
5. Paper Recorder, Digital Recorder
6. D.I. Water Supply Device
7. Compressed Air Supply Device
8. Data Acquisition System
