>PRODUCTS>Forced Convection Dry Oven

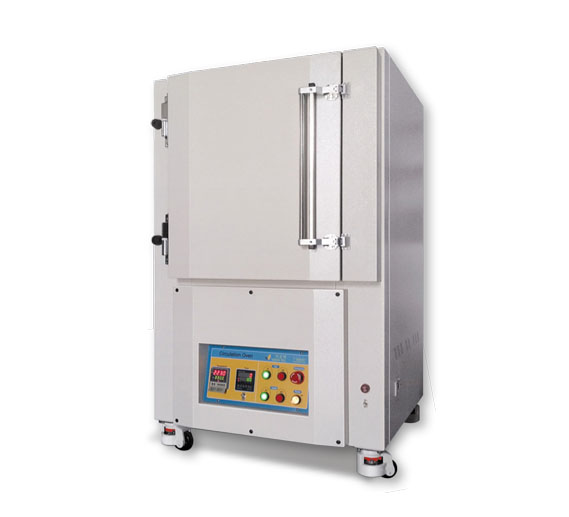

Forced Convection Dry Oven

The temperature distribution is uniform and the drying time is fast!

  • Control Panel
  • Inside of Forced Convection Dry Oven (Shelves)
Features
1. By using Digital P.I.D temperature controllers provides excellent temperature precision, and can be freely set temperature raising and temperature maintenance.
2. The PID Controller is a multifunctional temperature controller with built-in precise temperature control, Timer, Alarm, Auto Tuning, etc. and display the set temperature (SV), present temperature (PV) at the same time.
3. Auto Tuning : It is an operation function that calculates the PID integer required for optimal control by measuring the thermal characteristics and thermal response rate of various controlled objects on its own, and sets the value produce fast response and stability.
4. The temperature distribution is uniform and the drying time is fast as the air inside the chamber is forced to circulate by the sirocco fan.
5. Perfect double insulation treatment prevents internal heat from being transferred to the external. Offering even temperature distribution, perfect and safe design.
6. The height of the shelf can be adjusted and additional shelves can be ordered.
7. Time range selectable(4 digits) → 99Hr59Min, 99Min59Sec, 99Day99Hr
8. Automatically return to set mode in case of power failure

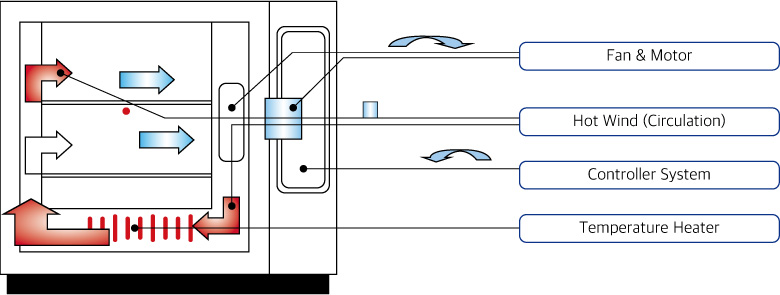

Temperature Control Principle
Specification
← Scroll Left/Right →
MODEL VT-DO 100
Temperature Range RT ~ 250°C (It can raise the temperature further by customer order)
Dimension
(WxDxH) mm		 In
(Room Capa.) ℓ		 800 x 600 x 800mm (380ℓ)
Out 1260 x 800 x 1600mm
Material In SUS 304
Out Steel Plate Painting
Temperature Control Digital P.I.D. Control
Temperature Sensor CA
Temperature Accuracy ±0.1°C
Temperature Stabiltiy ±0.5°C
Temperature Uniformity ±3.0°C
Rate of temperature rise per min. 3°C
Insulation Ceramic wool 100mm
Motor 0.4Kw x 1set
Method Forced Convection Oven (Forced Air Circulation)
Heater Capacity Electric Pipe Pin Heater (6Kw)
Shelves 　
Circulation 　
Recording System Select Option
Door Pulling Door(1 Door)
Sirocco Fan 8"x4"
Power Source / Power Consumption 3ØAC220V or 380V 50/60Hz
Safety Device
  • 1. ELB (Earth Leakage Breaker)
  • 2. OHP (Over Heating Protective Device)
  • 3. EOCR (Electronic Over Current Relay)
  • 4. NFB (No Fuse Breaker)
  • 5. RPR (Rverse Phase Relay)
Accessory Timer Buzzer A-mater Signal Lamp (3 colors)
Specialties (Select Option)
  • 1. Special dimensions can be ordered separately by the customer. (Test Chamber Size)
  • 2. Special Temp. can be ordered separately by the customer. (Test Temp. Range)
* External appearance & type and specifiation may be to change without advance notice to enhance the performance of equipment.
