Spray and Splash Water(Waterproof) Test Chamber
The spray and splash water test chamber is a equipment that tests whether or not waterproof standards indicated by IPX1 to 9K, such as IEC60529, ISO20653, etc., are met.
It is an equipment for evaluating water resistance due to intrusion of water and testing the reliability of samples and products through tests under various conditions that meet waterproof standards.
The spray and splash water test chamber has three types of appearance.
1. General Chamber Type
2. Walk-in Chamber Type
3. Room Type
-

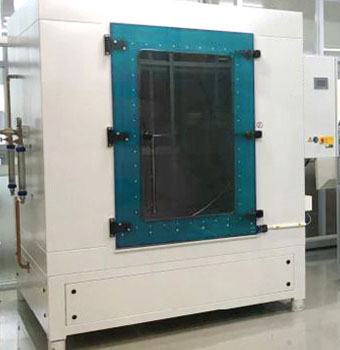

General Chamber Type
-

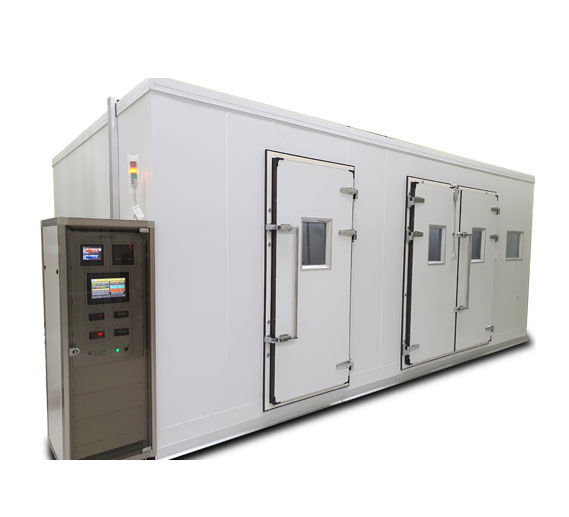

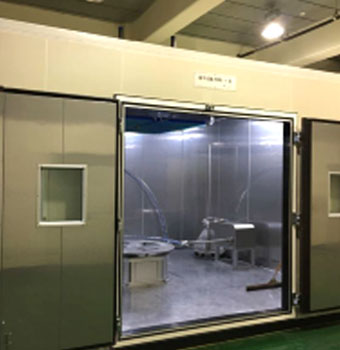

Walk-in Chamber Type
-

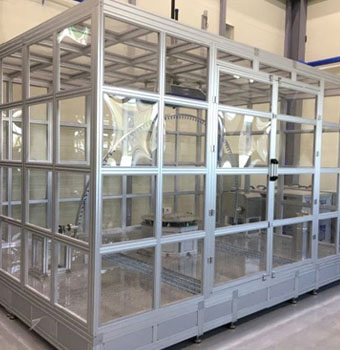

Room Type
IPX1~9K
-
IPX1~4
-
IPX1~2
-

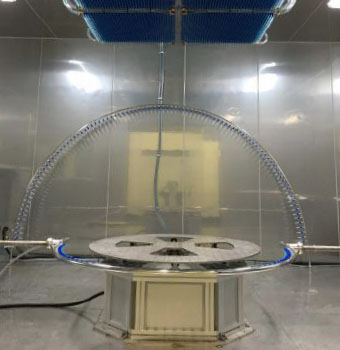

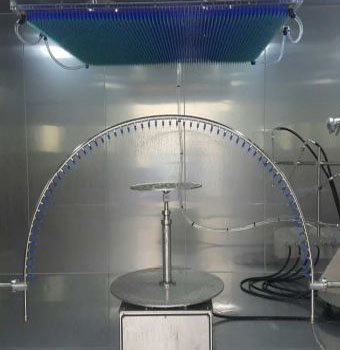

IPX3~4
-

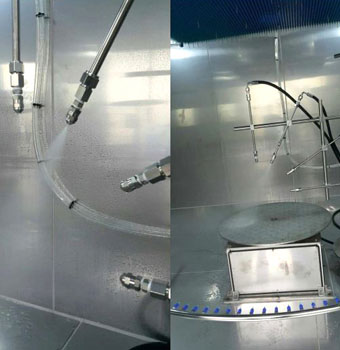

IPX5~6
-

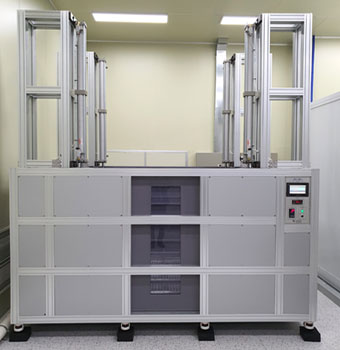

IPX7~8
-

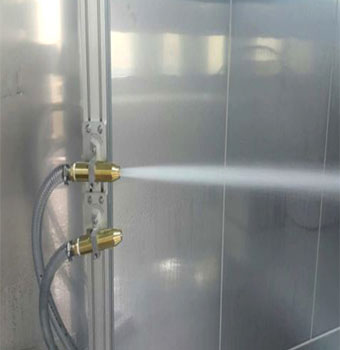

9K
Specification
← Scroll Left/Right →
| MODEL |
SSWT Series |
| Internal Dimension (WxDxH) |
1000x1000x1000mm ~ 6000x4000x3000mm
Large size products can be customized |
| Loading Box (WxDxH) |
600x600x100mm ~ 2000x2000x100mm
Large size can be customized |

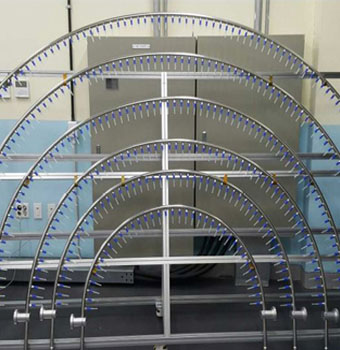

| Oscillating (Swivel Tube) |
R-400, 600, 800, 1000, 1200, 1400, 1600
Custom-made is possible |
| Turn Table |
Ø500, Ø1000, Other size can be customized
SUS304 Lathe Processing |
| Nozzle |
Brass |
| Appearance Type |
- 1. Chamber Type
- 2. Walk-in chamber Type
- 3. Room Type
|
| Control |
Touch Screen Digital Display |
| Applied Standard |
IEC60529 (IPX 1~8,9K), ISO20653, KS R 0015 (R1,R2,S1,S2) |
| Power Source |
AC 220/380V, 3Phase, 50/60Hz |
* External appearance & type and specifiation may be to change without advance notice to enhance the performance of equipment
