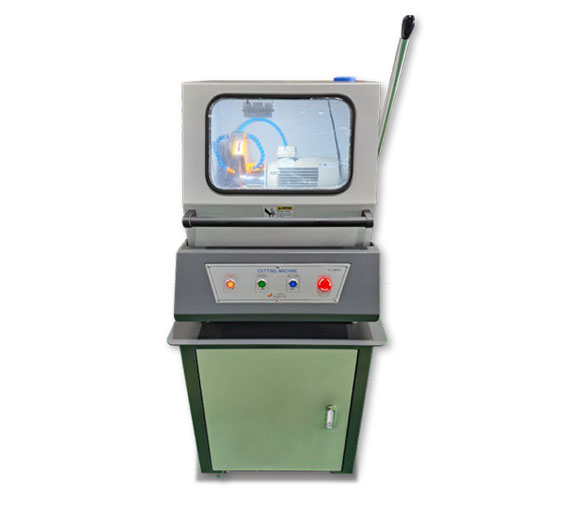

Cutting Machine

The specimen cutting machine is a device that can safely and hgih speed cut various test materials such as metal, ceramic, rubber, film, plastic, and composite materials. The specimen cutting machine aims to observe and analyze the microstructure of the specimen and uses a cutting wheel to cut the surface without damage.
Our products are excellent products that have proven their safety.
Features
1. Use to cut the metals,minerals, concrete& other solid materials.
2. The cooling water was sufficiently supplied during operation to minimize damage to the specimen due to heat while cutting the specimen. (Automatic supply of cooling water)
3. The internal observe window was maximized in consideration of safety and work observation during cutting work, and the visual effect was increased by installing an LED lamp.
4. It is designed as an integral structure, improving the convenience of work.
5. Even if the operator is different, there is no deviation in the specimen at the time of work, and it is possible to cut the specimen in large quantities quickly and accurately.
Specification
← Scroll Left/Right →
MODEL VT-CM 50 VT-CM 100 VT-CM 200 VT-CM 200-1 VT-CM 300
Type Manual Diamond Cutter
Method of Transfer Vise Level Transfer Type Motor Transfer Type Level Transfer Type Automatic Cutting by Load
Transfer Vise Quick Vise Screw Vise
R.P.M. 1750 RPM, Can do it up to 3400 RPM 50~600 RPM
Power Transfer Direct Connection Direct Connection
Cutting Wheel Ø255mm (1.2 ~2.0T) Ø355mm Ø405mm Ø127mm (0.5T)
Cutting Capa. Max. Ø80 Max. 90~ Ø110 Max.100~ Ø120 Ø10
Motor(HP) 2HP (Max.3HP)
WaterProof Type		 7.5 HP
WaterProof Type		 10 HP
WaterProof Type		 0.5 HP
WaterProof Type
Cutting Oil Tank 50ℓ 80ℓ inside
Lighting Device Perfect Waterproof Type 36W Nothing
Power Source 220V(380V)/3P/3Kw 220V(380V)/3P/3Kw 220V(380V)/3P/3Kw 220V/1P/1Kw
Dimension(mm)
WxDxH		 645x700x1400 645x700x1400 900x1100x1700 410x50x450
Weight(Kg) 100 120 350 450 30
Accessory
  • 1. Grinding wheel for cutting : 255 x 1.5T (10ea)
  • 2. Spanner and fixture for wheel replacement
  • 3. Cutting Oil 2ℓ
Option 1. Inverter
← Scroll Left/Right →
MODEL VT-CM 400 VT-CM 500 VT-CM 600 VT-CM 700
Type Auto Manual Auto
Method of Transfer Vise Level Transfer Type Motor Transfer Type
Transfer Vise Scrwe Vise
R.P.M. 1750 RPM, 3450 RPM (Can do it up to 3400 RPM)
Power Transfer Direct Connection Belt Type
Cutting Wheel Ø355mm (Can do it up to Ø455mm)
Cutting Capa. Max.Ø100mm (Enable to select Ø130mm)
Motor(HP) 7.5HP (Enable to select 10HP~20HP)
Cutting Oil Tank 100ℓ 120ℓ
Lighting Device Perfect Waterproof Type 36W
Power Source 220V(380V)/3P/5Kw~15Kw
Dimension(mm)
WxDxH		 900x1100x1700 1100x800x1700 900x1100x1700 1450x1450x2400
Weight(Kg) 500 800 500 1400
Control panel
System		 7"Touch Screen&Button Type Button Type 7"Touch Screen&Button
Type
Accessory
  • 1. Grinding wheel for cutting : 255 x 1.5T (10ea)
  • 2. Spanner and fixture for wheel replacement)
  • 3. Cutting Oil) 2ℓ
Option 1. Inverter
