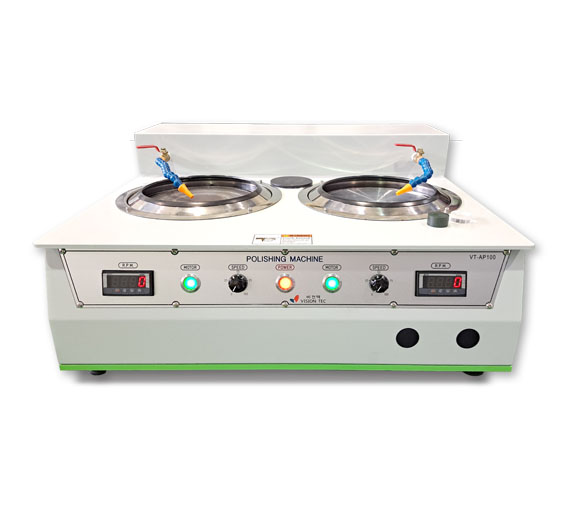

Semi-Automatic Polisher
This tester is used to polishing surfaces of specimen before viewing to moulded specimen surface with a metal microscope.
Alternatively, it is used to polish the surface before conducting a hardness test.
Features
1. Polishing work is possible in the absence of workers too by mounting the timer function & semi-automatic head.
2. Simple design is making the surrounding area shining.
Specification
← Scroll Left/Right →
| MODEL |
VT-AP 100-2 ( Double Rotation Plate ) |
| Motor Capa. |
AC 350W x 2ea |
| RPM |
MAX. 0 ~ 1200 RPM / (Adjustable Respectively) |
| Plate Diameter (Wheel size) |
Ø230mm x 2 (Basic) |
| Material |
SS41 / 1.2t |
| Power Transfer Method |
Belt Drive (Prevent Trouble due to leaks) |
| Speed Control |
Inverter Control |
| Timer |
Digital |
| Dimension (WxDxHmm) |
700 x 550 x 350mm |
| Weight |
60Kg |
| Power Source |
AC 220 V, 1 Phase, 50/60Hz, 2Kw |
| Accessory |
- 1.Sand Paper
- 2.Polishing-Clothes
|
| Specialties |
- 1. Plate Diameter → (It can be make a size large or small by customer order.)
- 2. Auto-Pole → Select Option / Refer to the picture
|
* External appearance & type and specifiation may be to change without advance notice to enhance the performance of equipment.
